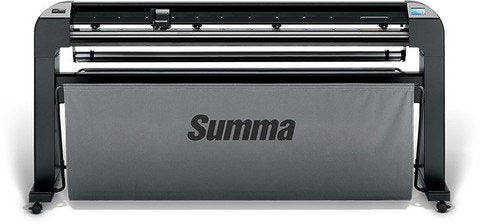

Summa S2™ D Series vinyl cutters unite legendary S Class power and precision with an efficient and affordable drag knife cutting head. Boasting an astonishing array of industry-first innovations and built-in capabilities, S2™ D Series does more than any other vinyl cutter in its class. Precisely.
|
Tracking Performance |
Within ± 0.004 in. (± 0.1mm) on plots up to 40 ft. long (12 m) on rolls up to 760 mm wide long |
|||
|
Accuracy |
0.2 % of movement or 0.25 mm, whichever is greater |
|||
|
Cutting Force |
0-400 grams of down-force, in 5 gram increments |
|||
|
Display Language |
English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Lithuanian; Portuguese |
|||
|
Connectivity |
USB; Ethernet |
|||
|
Power Requirements |
100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum |
|||
|
Dimensions |
S2 D75 55.5 (W) x 26.8 (D) x 43.7 (H) in. (141 (W) x 68 (D) x 111 (H) cm) |
S2 D120 73.6 (W) x 26.8 (D) x 43.7 (H) in. (187 (W) x 68 (D) x 111 (H) cm) |
S2 D140 79.6 (W) x 26.8 (D) x 43.7 (H) in. (202 (W) x 68 (D) x 111 (H) cm) |
S2 D160 88.6 (W) x 26.8 (D) x 43.7 (H) in. (225 (W) x 68 (D) x 111 (H) cm) |
|
Shipping Weight |
S2 D75 152 lbs (69 kg) |
S2 D120 189 lbs (86 kg) |
S2 D140 198 lbs (90 kg) |
S2 D160 251 lbs (114 kg) |
|
Operating Temperature |
15˚ to 35˚C (59˚ to 95˚F) |
|||
|
Standard Accessories |
WinPlot or MacSign Cut Software, CutterControl Parameter Software, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Stand and Basket. |
|||
|
Optional Accessories |
Roll- |
|||
