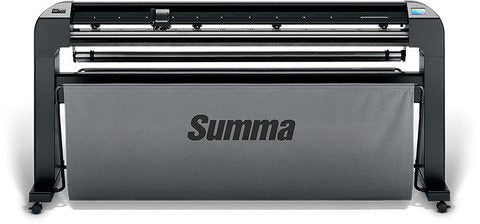

Summa S2™ D Series vinyl cutters unite legendary S Class power and precision with an efficient and affordable drag knife cutting head. Boasting an astonishing array of industry-first innovations and built-in capabilities, S2™ D Series does more than any other vinyl cutter in its class. Precisely.



Tracking Performance

Within ± 0.004 in. (± 0.1mm) on plots up to 40 ft. long (12 m) on rolls up to 760 mm wide long
up to 13 ft. (4 m) long on rolls over 760 mm wide


0.2 % of movement or 0.25 mm, whichever is greater

Cutting Force

0-400 grams of down-force, in 5 gram increments

Display Language

English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Lithuanian; Portuguese


USB; Ethernet

Power Requirements

100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum


S2 D75 55.5 (W) x 26.8 (D) x 43.7 (H) in. (141 (W) x 68 (D) x 111 (H) cm)

S2 D120 73.6 (W) x 26.8 (D) x 43.7 (H) in. (187 (W) x 68 (D) x 111 (H) cm)

S2 D140 79.6 (W) x 26.8 (D) x 43.7 (H) in. (202 (W) x 68 (D) x 111 (H) cm)

S2 D160 88.6 (W) x 26.8 (D) x 43.7 (H) in. (225 (W) x 68 (D) x 111 (H) cm)

Shipping Weight

S2 D75 152 lbs (69 kg)

S2 D120 189 lbs (86 kg)

S2 D140 198 lbs (90 kg)

S2 D160 251 lbs (114 kg)

Operating Temperature

15˚ to 35˚C (59˚ to 95˚F)

Standard Accessories

WinPlot or MacSign Cut Software, CutterControl Parameter Software, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Stand and Basket.

Optional Accessories
